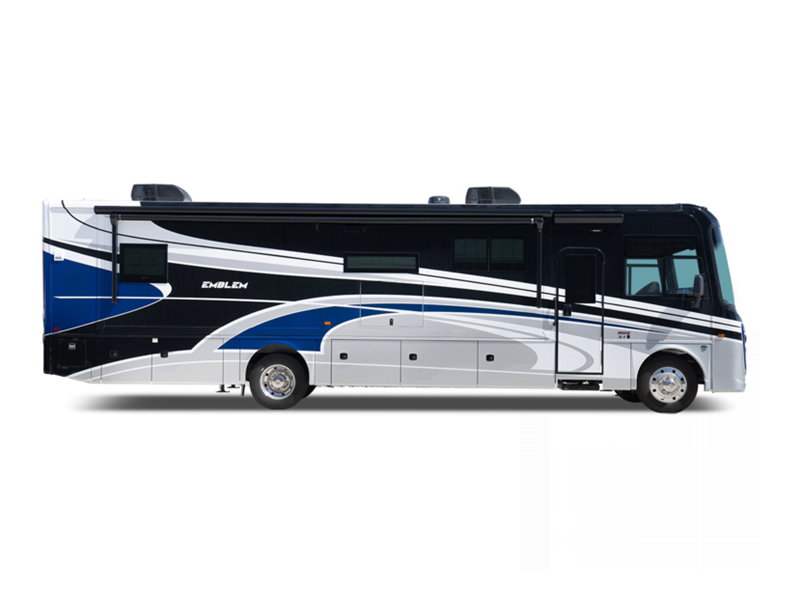

Entegra Coach Emblem Motor Home Class A RVs For Sale

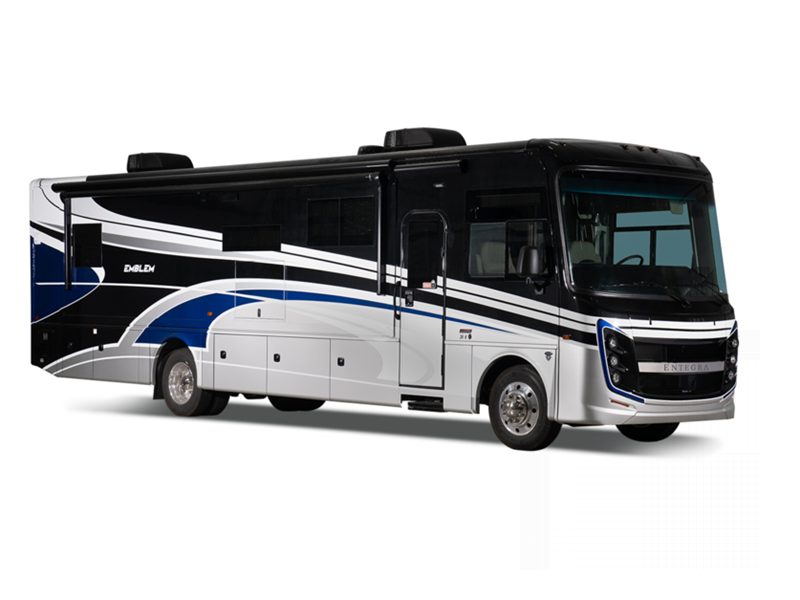

The Emblem Class A gas motorhome by Entegra Coach is livable and comfortable. With class-leading features, exquisite finishes, more technology and the E-Z Drive Elite package, the drive is just as wonderful as the destination!
Each is built on a Ford F53 chassis with a 7.3L V-8 335 HP engine, and includes front and rear disc, 4-wheel anti-lock brakes, and a 5,000 lb. rear hitch receiver with dual connector and 7-pin plug to be able to tow your commuter vehicle or toys. The cockpit offers a Pioneer 8" infotainment center with Apple CarPlay and Android Auto, backup and side-view cameras for safety when on the road and parking, and 6-way power and swivel driver/passenger seats to be able to enjoy the seating while driving or stopped. The interior offers luxurious amenities such as an electric fireplace, LED-lit solid surface kitchen countertops, a residential refrigerator, and a shower with decorative surround, glass door, skylight and light.
Get ready to enjoy the road and the destination the same in an Entegra Coach Emblem Class A gas motorhome!
-

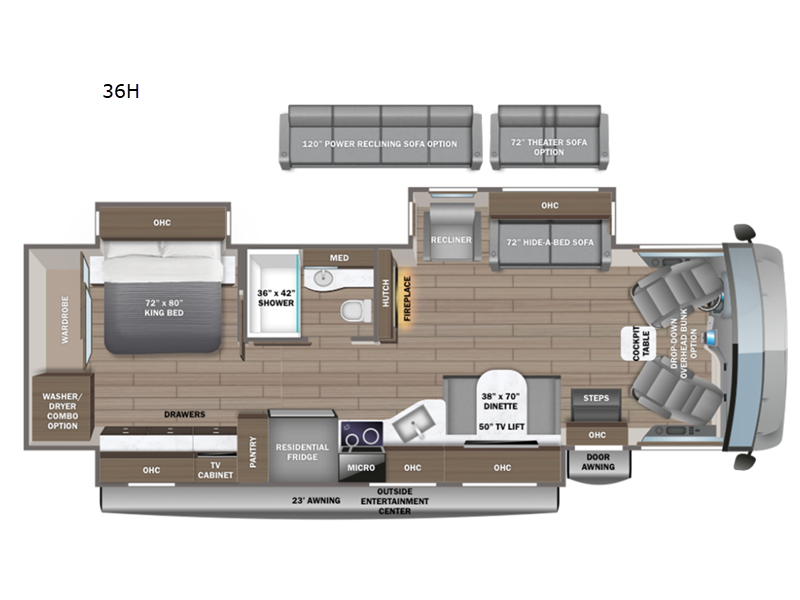

Emblem 36H
Entegra Coach Emblem Class A gas motorhome 36H highlights: Full Wall Slide ... more about Emblem 36H
Have a question about this floorplan? Contact Us
Specifications

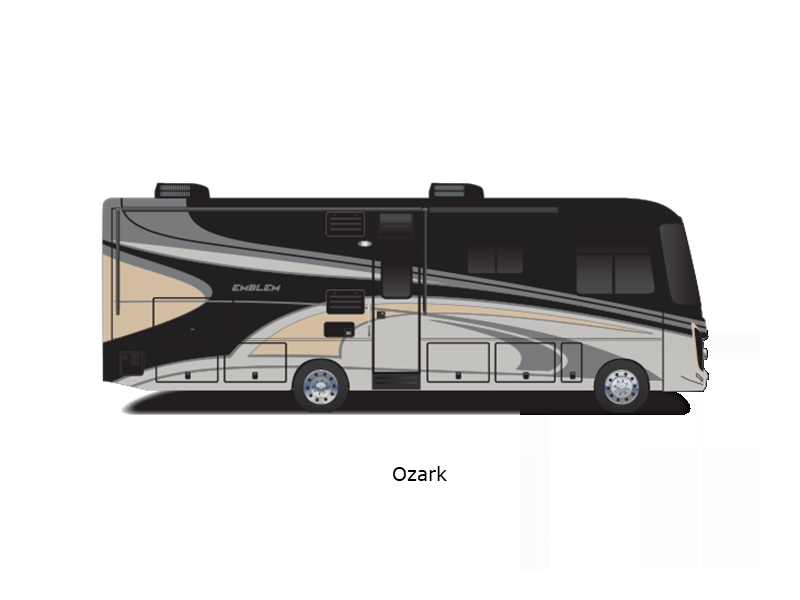

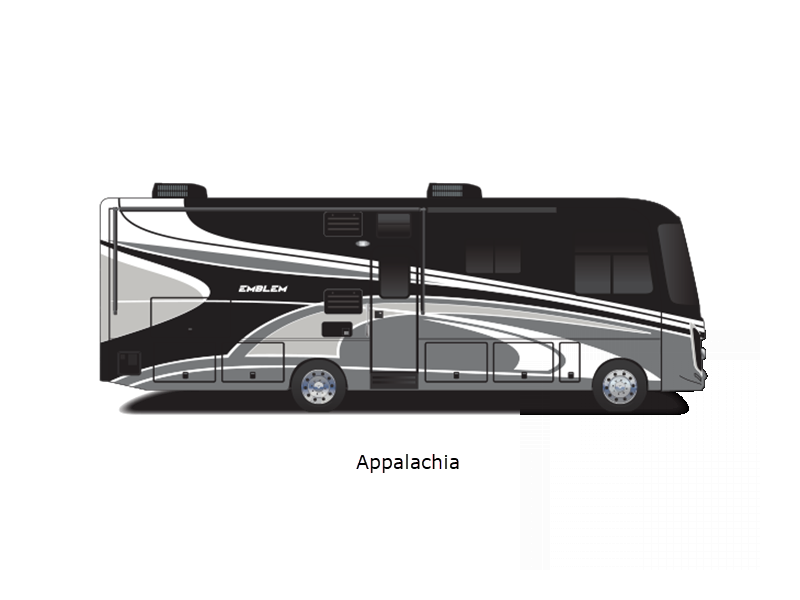

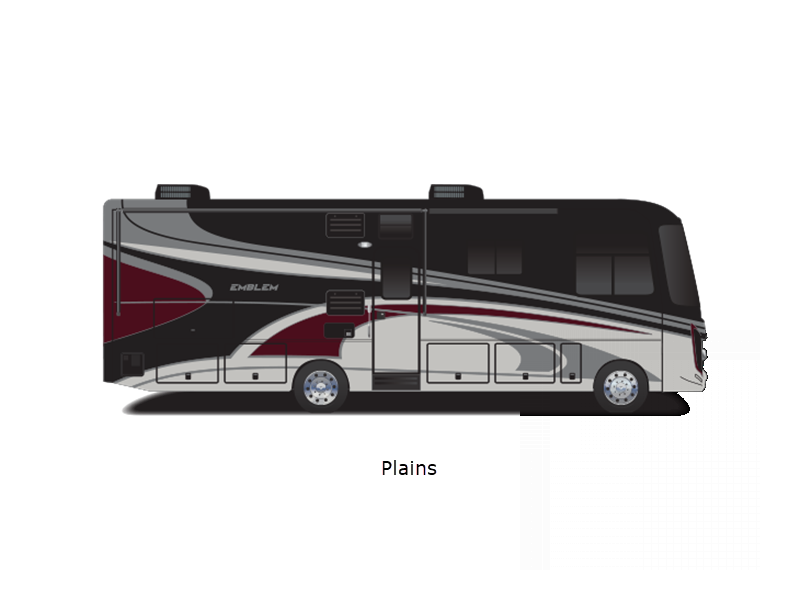

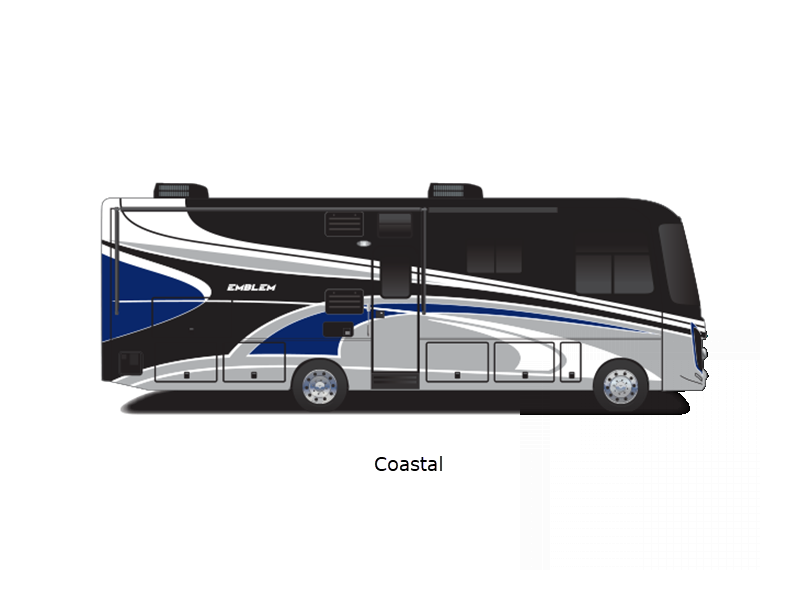

Sleeps 5 Slides 3 Length 38 ft 8 in Ext Width 8 ft 5 in Ext Height 12 ft 7 in Int Height 7 ft Interior Color Fossil, Denmark Exterior Color Full Body Paint; Appalachia, Coastal, Ozark, Plains Hitch Weight 5000 lbs GVWR 24000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 40 gals Black Water Capacity 40 gals Tire Size 255/80R22.5 Furnace BTU 30000 btu Generator 5,500W Fuel Type Gasoline Engine 7.3L V8 Chassis Ford F53 Horsepower 335 hp Fuel Capacity 80 gals Wheelbase 252 in Number Of Bunks 1 Available Beds King Torque 468 ft-lb Refrigerator Type Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 36" x 42" Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 24.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 50" LED HD Smart TV, BR LED HD Smart TV, Exterior LED HD Smart TV Awning Info 23' Electric w/LED Lights Washer/Dryer Available Yes Gross Combined Weight 30000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Emblem 36T
Entegra Coach Emblem Class A gas motorhome 36T highlights: Bath and a Half Bunk ... more about Emblem 36T
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 3 Length 38 ft 8 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Fossil, Denmark Exterior Color Full Body Paint; Appalachia, Coastal, Ozark, Plains Hitch Weight 5000 lbs GVWR 24000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 50 gals Black Water Capacity 31 gals Tire Size 255/80R22.5 Furnace BTU 30000 btu Generator 5,500W Fuel Type Gasoline Engine 7.3L V8 Chassis Ford F53 Horsepower 335 hp Fuel Capacity 80 gals Wheelbase 252 in Number Of Bunks 3 Available Beds King Torque 468 ft-lb Refrigerator Type Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 36" x 42" Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 24.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 50" LED HD Smart TV, BR LED HD Smart TV, Exterior LED HD Smart TV Awning Info 12' Electric w/LED Lights Washer/Dryer Available Yes Gross Combined Weight 30000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-

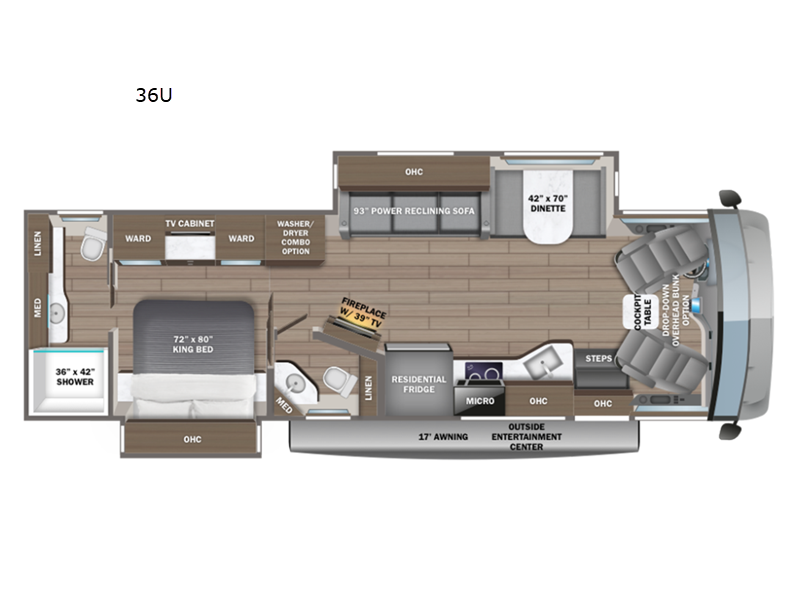

Emblem 36U
Entegra Coach Emblem Class A gas motorhome 36U highlights: Bath and a Half King ... more about Emblem 36U
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 2 Length 38 ft 2 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Fossil, Denmark Exterior Color Appalachia, Coastal, Ozark, Plains Hitch Weight 5000 lbs GVWR 24000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 50 gals Black Water Capacity 31 gals Tire Size 255/80R22.5 Furnace BTU 30000 btu Generator 5,500W Fuel Type Gasoline Engine 7.3L V8 Chassis Ford F53 Horsepower 335 hp Fuel Capacity 80 gals Wheelbase 252 in Number Of Bunks 1 Available Beds King Torque 468 ft-lb Refrigerator Type Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 36" x 42" Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 24.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR LED HD Smart TV, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 17' Electric w/LED Lights Washer/Dryer Available Yes Gross Combined Weight 30000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
Take a Virtual Tour
Emblem Features:
Standard Features
Chassis
- E-Z DRIVE™ ELITE: Computer-balanced driveshaft, Bilstein® steering stabilizer, Koni® shocks, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, 22.5 in. Michelin® tires
- Automatic hydraulic leveling jacks
- Ford® F53 chassis
- 7.3L V-8 335 HP engine with 468 ft.-lb. torque
- 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
- 210-amp alternator
- Catalytic converter theft deterrent
- G-rated highway tires-255/80R22.5
- Front and rear disc, 4-wheel anti-lock brakes
- 5,000-lb. rear hitch receiver with dual connector and 7-pin plug
- 12V chassis battery
- 80-gal. fuel tank
Construction
- TuffShell™ vacuum-bond laminated floor
- One-piece, seamless, crowned fiberglass roof; TuffShell™ vacuum-bond laminated roof
- TuffShell™ vacuum-bond laminated sidewalls
- Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
Heat, AC, Water & Power
- 15,000-BTU A/C unit with heat pump and second 13,500-BTU A/C unit
- 5,500W generator with auto-gen start
- 2,000W inverter
- 50-amp electrical service
- 10 gal. gas/electric water heater
- Thetford® Sani-Con® Turbo macerator system
- 200W solar panel with dual controller
- (2) 6V AGM (220Ah) house batteries on slideout tray
- Transfer switch with reverse polarity protection
- 24.5 gal. propane tank (83 lb.) with LP quick-connect hookup
- Winterization drain system
- Black tank flush
- 12V demand water pump
- Water filtration system
- 30,000 BTU auto-ignition ducted furnace
Exterior
- Frameless windows
- Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket
- Electric patio awning with LED lights
- Slide out awning(s)
- One-piece, seamless fiberglass front and rear caps
- Premium Sikkens full-body paint

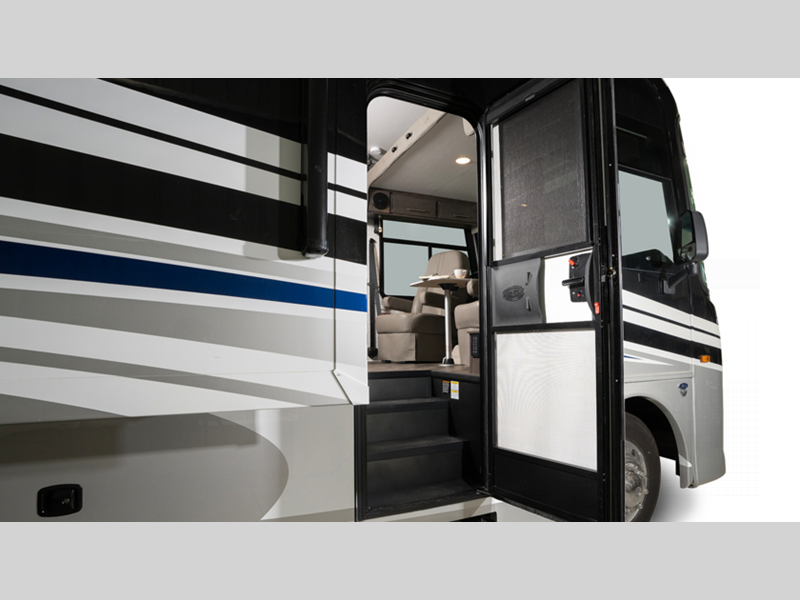

- Entrance door with industry’s largest travel-view window
- Electric-powered entrance steps
- Lockable pass-through storage compartments with slam latches
- Third brake light
- Roof ladder
- Prep for satellite dish

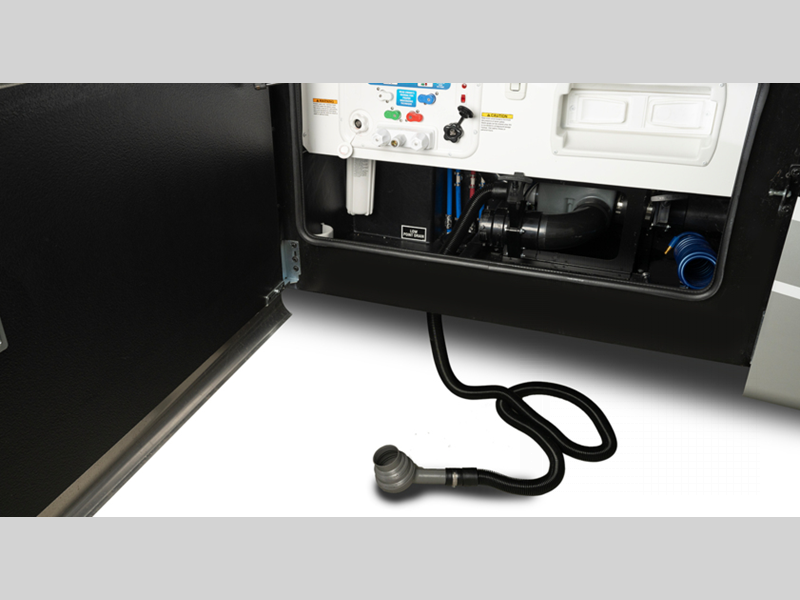

- Exterior utility center
- Outside shower
- Winegard 2.0 Wi-Fi/4G antenna

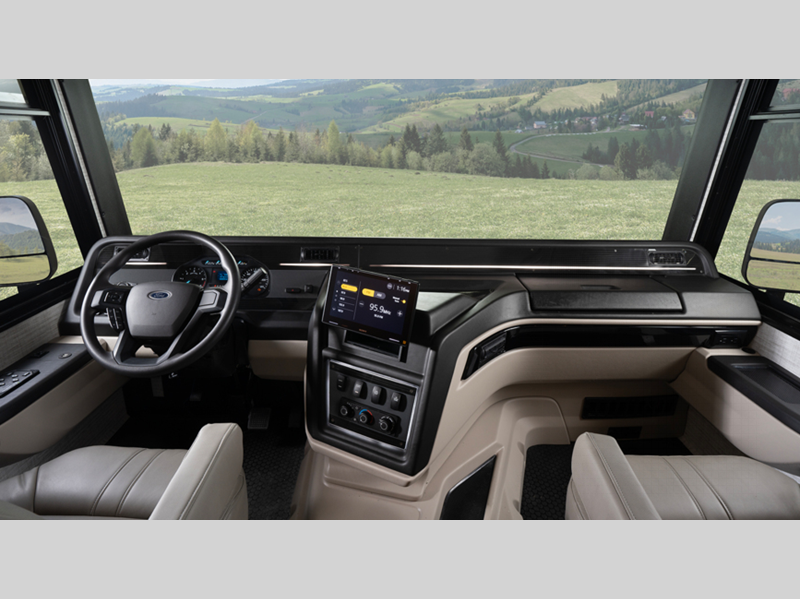

Cockpit
- Pioneer® 8 in. infotainment center with Apple CarPlay® and Android Auto™
- Backup and side-view cameras
- Removable driver/passenger cockpit table
- 120 in. panoramic windshield
- 6-way power and swivel driver/passenger seats
- Soft-touch, vinyl-wrapped automotive dash
- Tilt steering wheel
- Cruise control; Hill start assist; Electronic stability control; Traction control
- Auxiliary start
- Power front privacy shade with manual side privacy shades

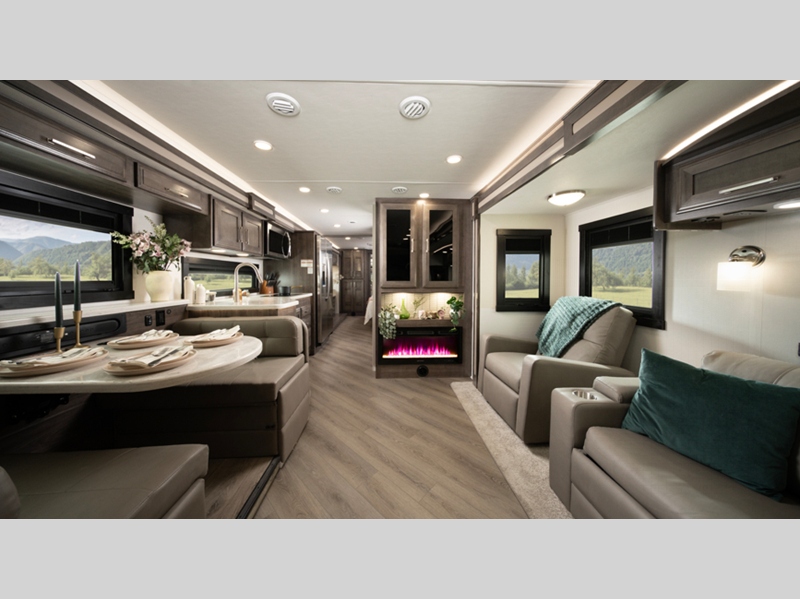

Interior
- LED HD Smart TV in living area
- Day/night roller shades in living area
- Cable TV hookup with RG-6 coax
- Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control
- 84-in. interior ceiling height with padded vinyl ceiling
- High-intensity recessed LED ceiling lights
- Vinyl plank flooring
- LED-lit hardwood fascia
- Hardwood cabinet doors and drawers with deluxe hidden cabinet hinges
- Electric Fireplace
- Bunks with industry-exclusive, 300-lb. capacity each, with wall-mounted tablet holders (36T)
Kitchen
- LED-lit, solid-surface kitchen countertops
- Recessed stainless steel sink with sink covers
- Ball-bearing drawer guides
- Entegra-exclusive, easy-operation legless dinette table; Car seat tethers (select floorplans)
- Wood-framed kitchen window with spice cabinets
- Residential refrigerator
- 2-burner induction cooktop
- Residential-size convection microwave oven
Bedroom
- Walk-around, King-size bed with bedspread and nightstands
- USB port and wireless charging in nightstands
- Under-bed storage (select models)
- LED HD Smart TV in bedroom
- Large wardrobes
Bathroom
- Shower with decorative surround, glass door, skylight and light

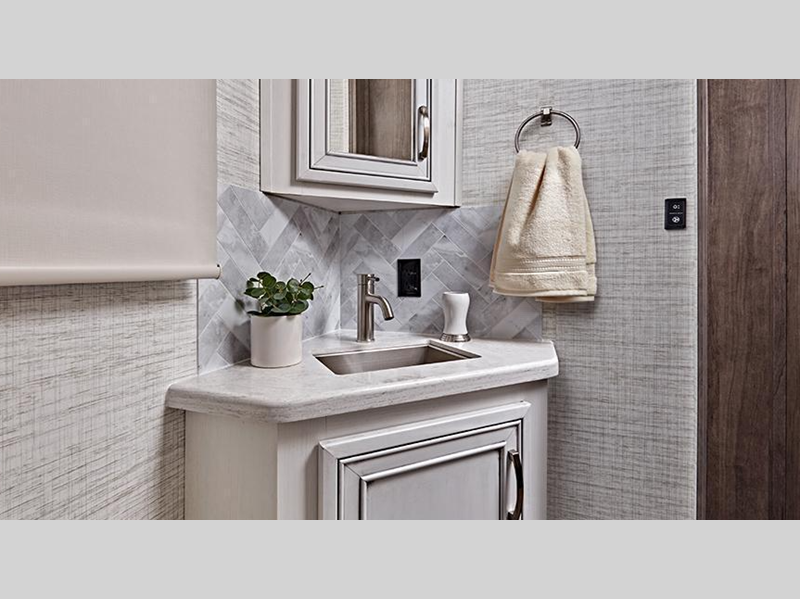

- Recessed, LED-lit, stainless steel bathroom sink
- Porcelain toilet with foot flush
- Powered roof vent in bathroom with wall switch
Safety
- 2-point lap safety belts in all designated seating locations
- Smoke alarm
- Carbon monoxide detector
Options
- Drop-down overhead bunk in cab area with 750 lb. capacity
- Power theater seating (36H, 36T)
- 120 in. straight reclining sofa (36H)
- Freestanding table with 4 chairs (36U)
- 15 cu.ft. 12V refrigerator
- Combination washer/dryer (36T, 36U)
- Stackable washer/dryer (36H)
- Customer Value Package (Mandatory): E-Z Drive™ Elite; Automatic hydraulic leveling jacks; Frameless windows;15,000 BTU A/C unit with heat pump; 13,500 BTU A/C unit; Exterior entertainment center; Electric patio awning; Slideout awnings; Onan® 5,500W generator; 2,000W inverter; 50-amp electrical service; 10 gal. gas/electric water heater; Pioneer® 8 in. infotainment center; Backup and side-view cameras; Removable driver/passenger cockpit table; Solid-surface kitchen countertops; LED HD Smart TV in LR, Day/night roller shades in LR
- Canadian standards
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Manu-Facts:
In the spring of 2008, Entegra Coach became a member of the Jayco family of companies. Ever since, we've taken great pride in the details—and each luxury motorhome we build embodies that principle.
We started building luxury motorcoaches one at a time—with a superior foundation, unrelenting attention to detail and old-world craftsmanship, unmatched engineering innovation, rock-solid construction and a ride that's as smooth and quiet as it is invigorating and well-appointed.
In 2018, our pursuit of the superior luxury motorhome expanded beyond diesel Class A coaches to gas Class As and Class Cs. By building on experience and listening to customers, we're making the Entegra Coach luxury experience a reality for more travelers than ever. As always, we back each coach with personalized customer service and coverage that is unmatched in the industry.
So from the moment you drive off the lot, you're not only an owner—you're a member of the family
